40m Rig Personnel / Utility Vessel Gen 2

40m Rig Personnel / Utility Vessel

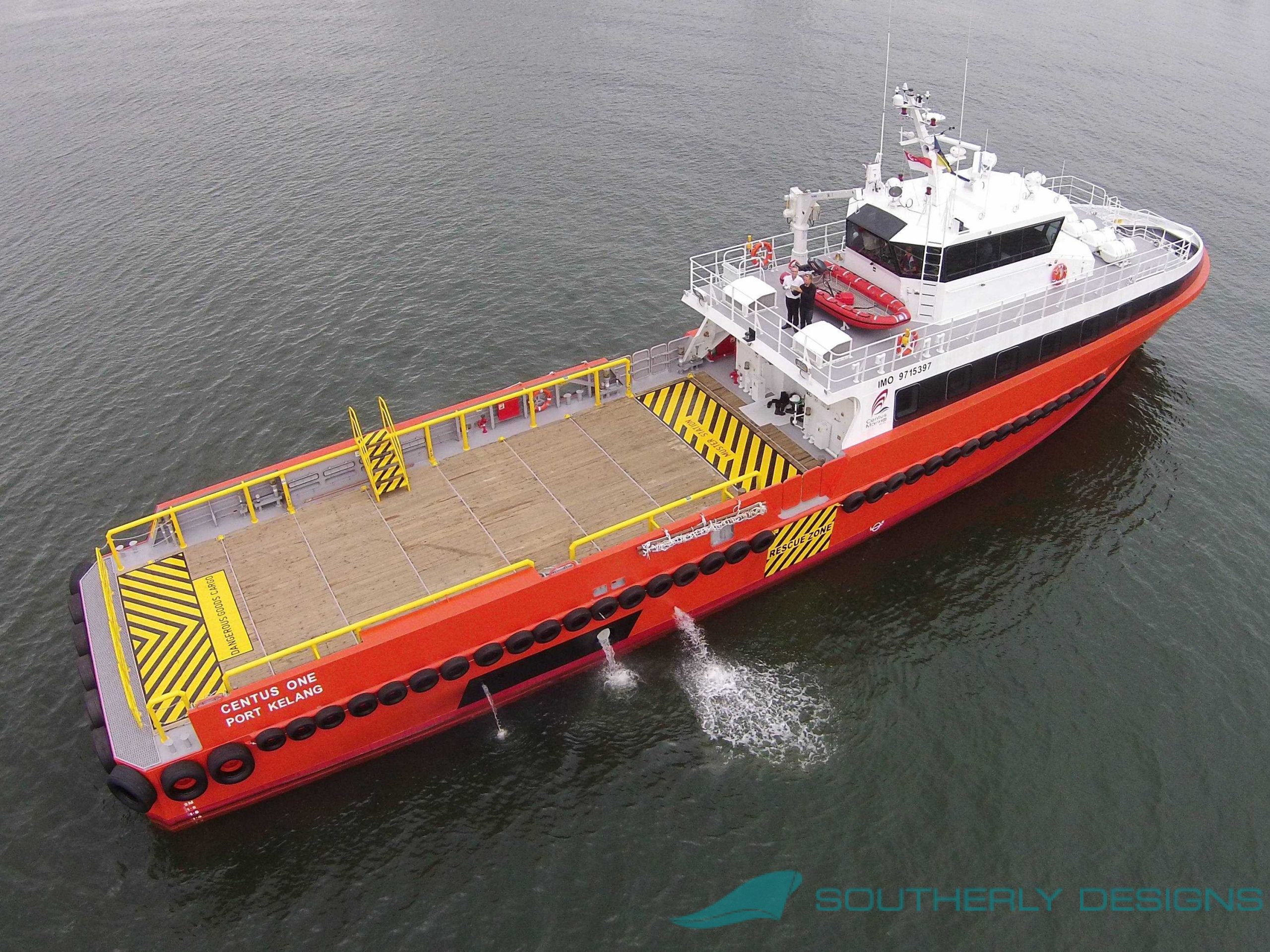

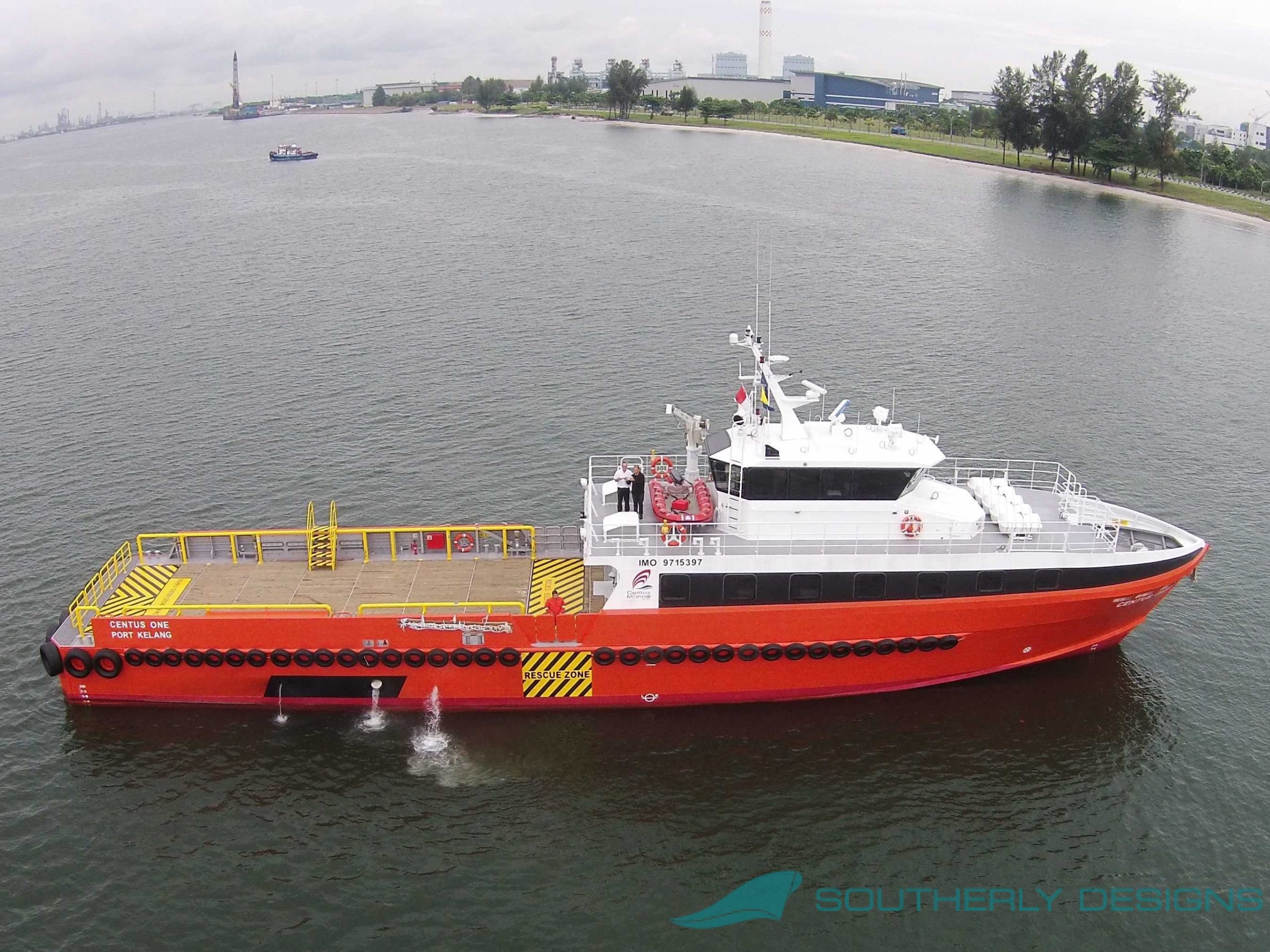

The hugely successful 40.37 metre range of Rig Personnel / Utility Vessels are one of Southerly’s key designs of the recent years. The Generation 2 hull is complemented by a number of possible engine and drive line arrangements, to maintain an impressive cruising speed of 25 knots. The stern deck provides 105 square metres of workable deck area and is able to carry up to 47.5 tonnes of deck cargo. The central deck house comfortably seats 70 passengers and on the upper deck is the bridge which incorporates two control stations.

FacebookTwitterGoogle+

Specifications

Vessel Length 40.37 Meters
Launch Date Oct 2014
Vessel Type Rig Personnel / Utility Vessel
Survey Class OSV Code. MSC.235
Builder Strategic Marine
Construction Material Marine Grade Aluminium
LOA 40.37 m
Beam 7.5 m
Main Engines 2 x KTA 38 Cummins, 1 x KTA 50 Cummins
Propulsion Fixed Pitch Propeller
Speed Max 27 kts
Speed Cruise 25 kts
Fuel Capacity 56,000 L
Fresh Water Capacity 29,600 L
Accommodation 10
Crew 10
Passengers 70
