Berkeley – Pilot Boat

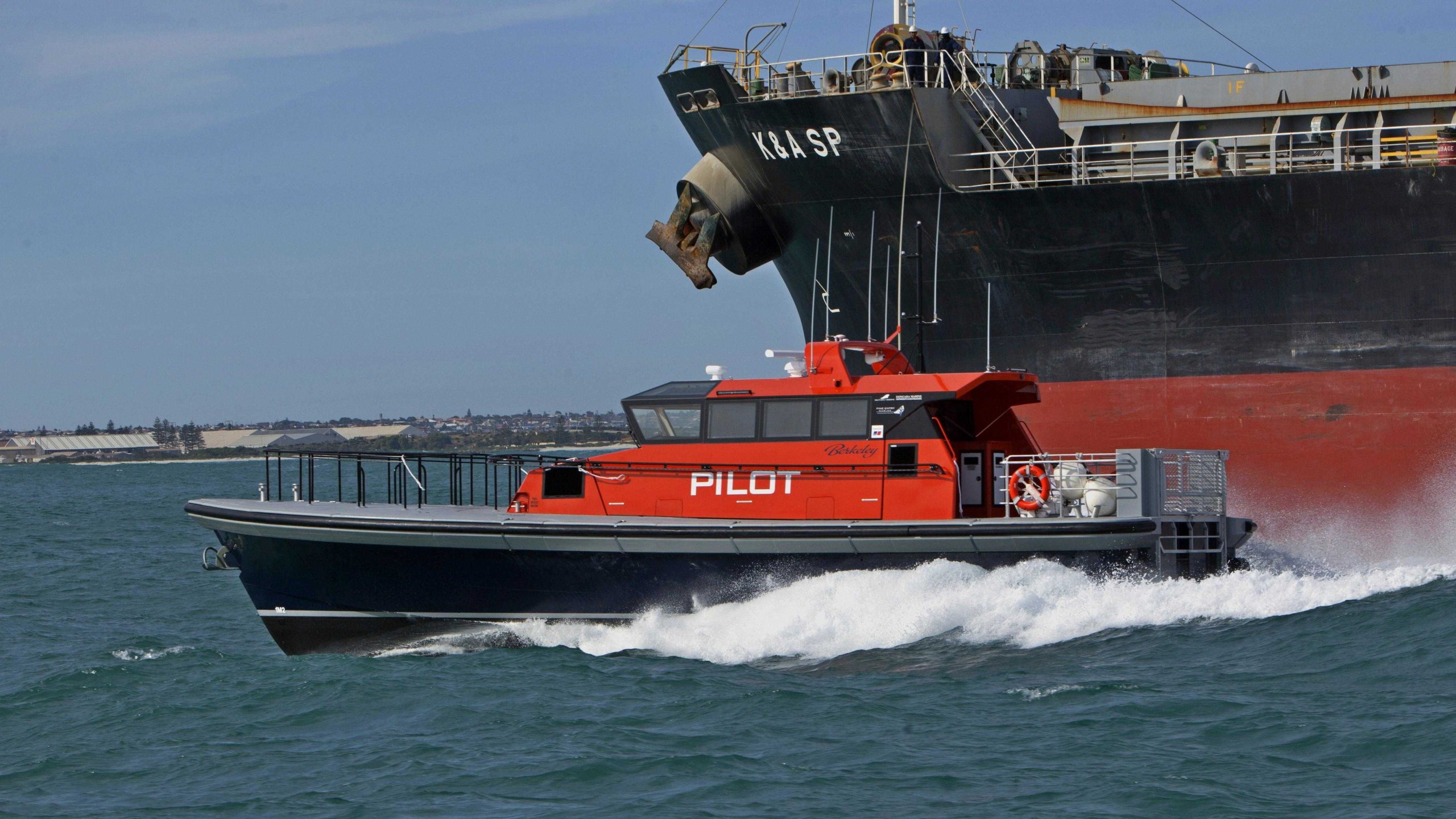

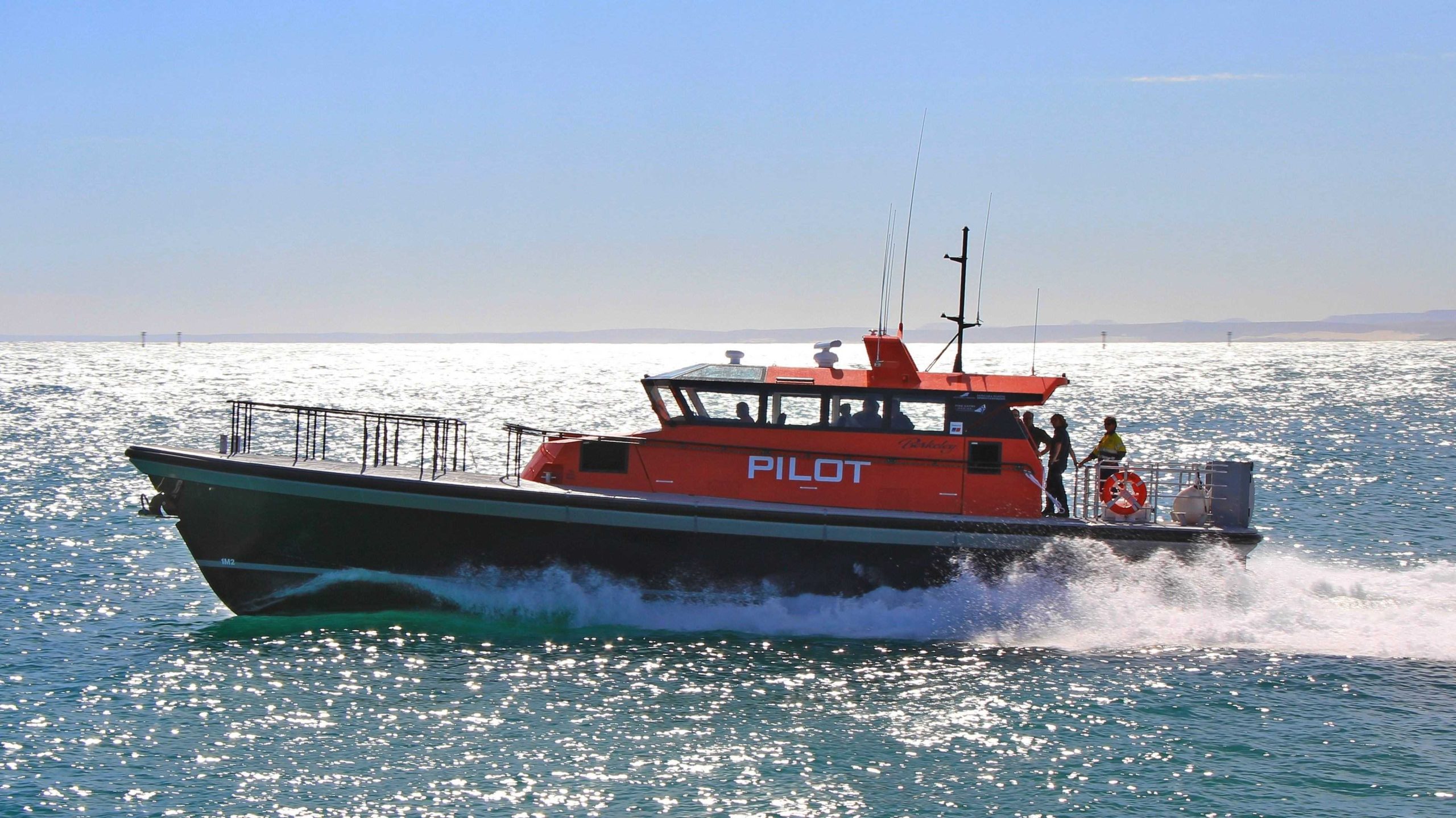

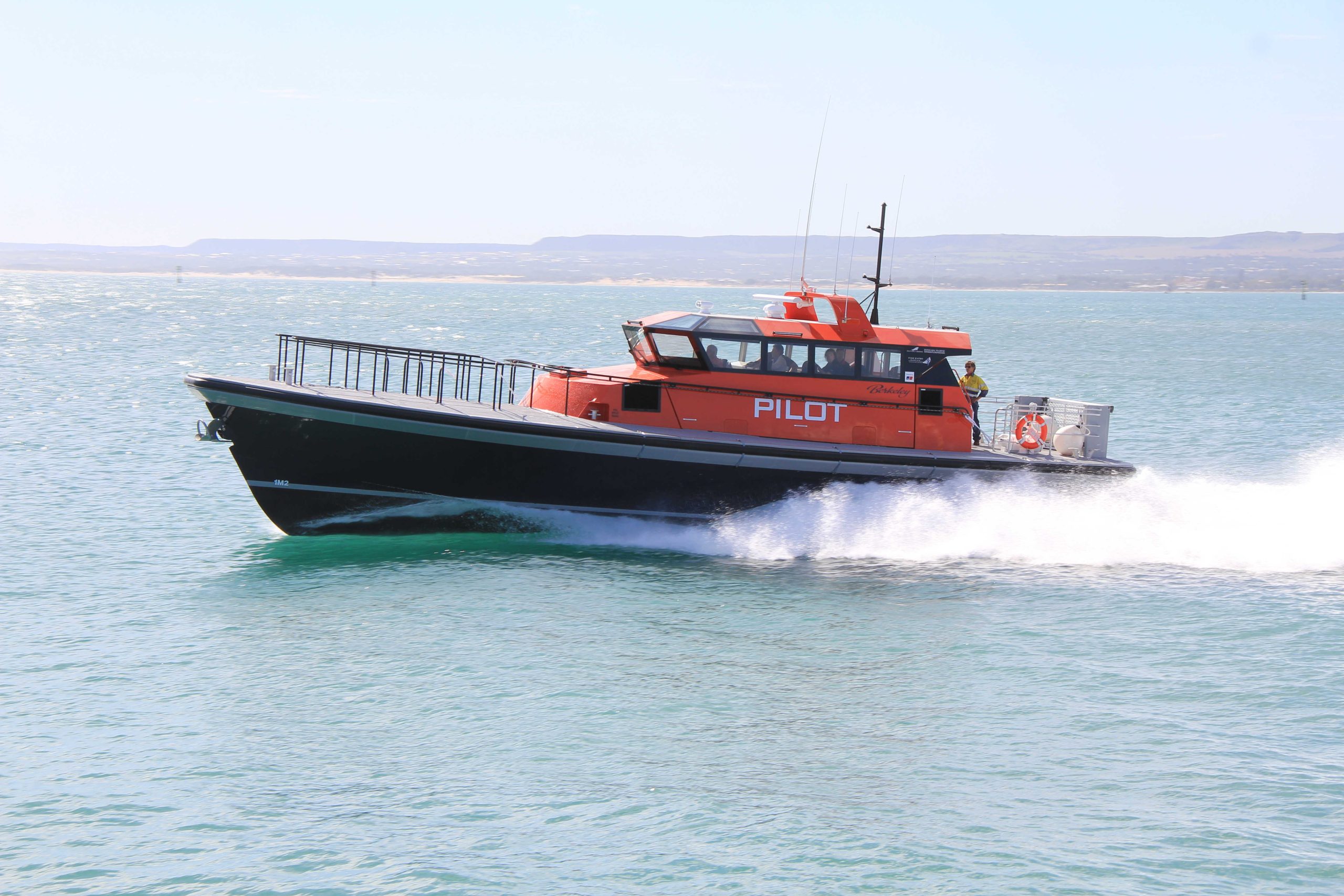

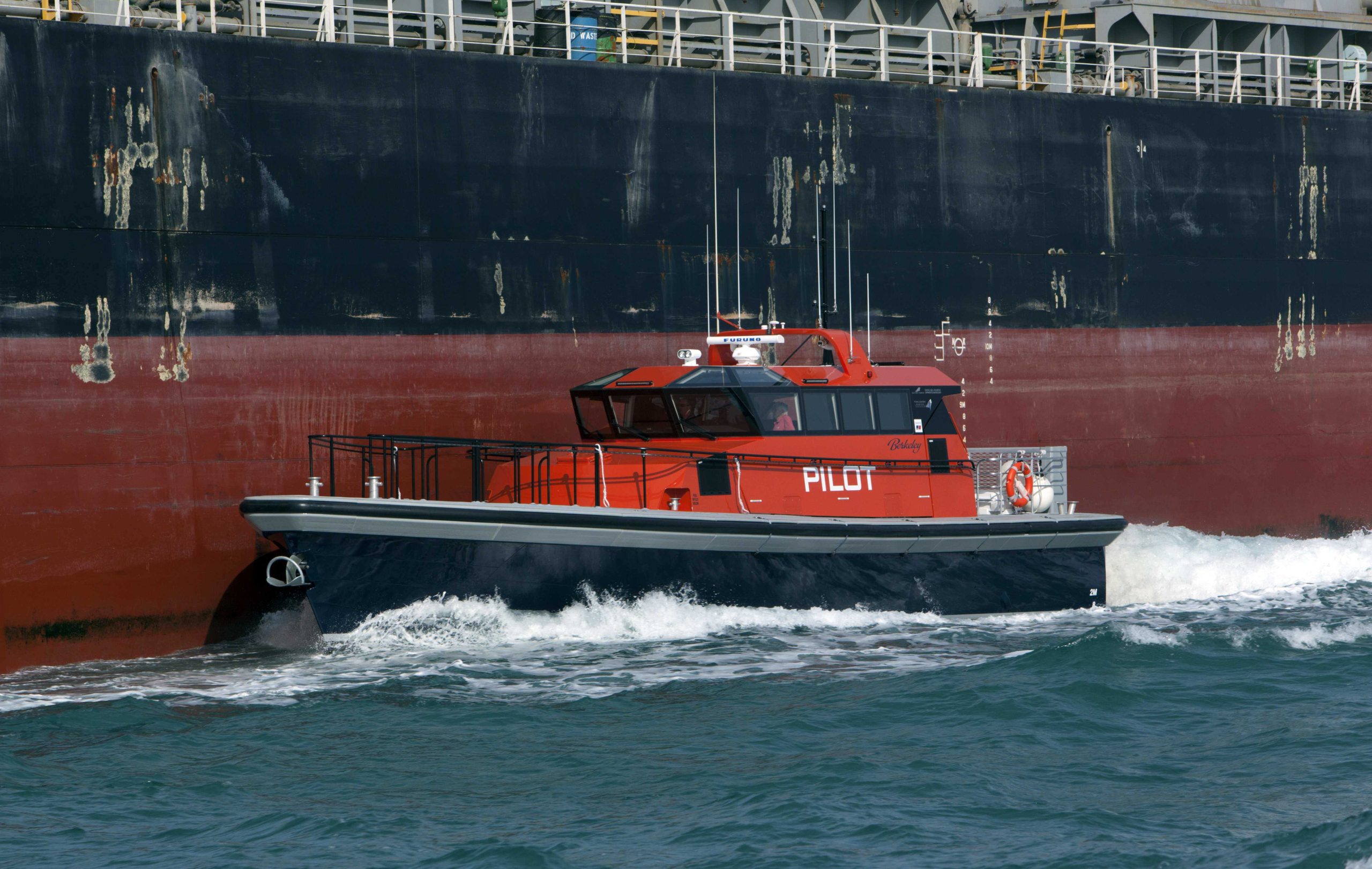

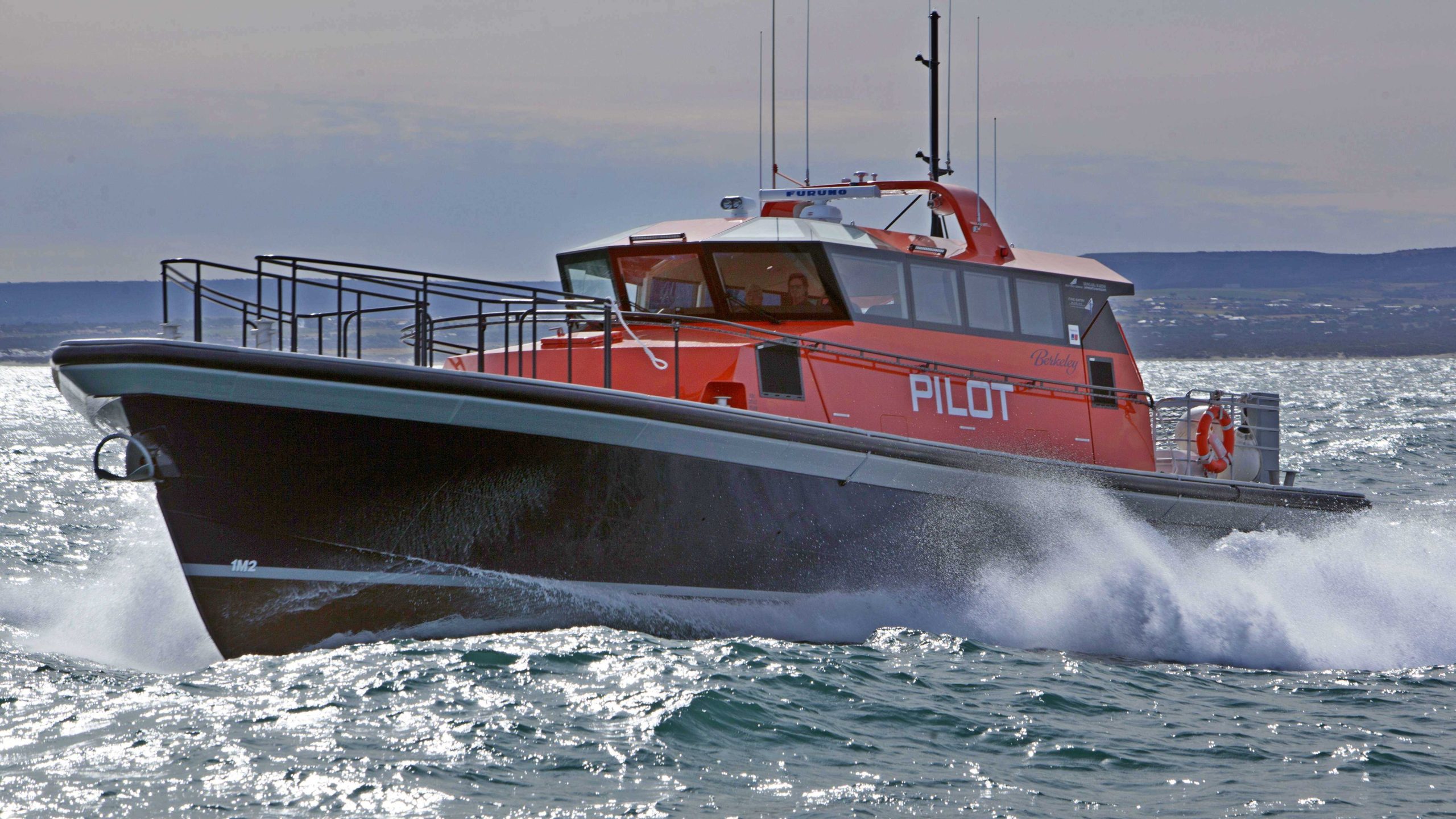

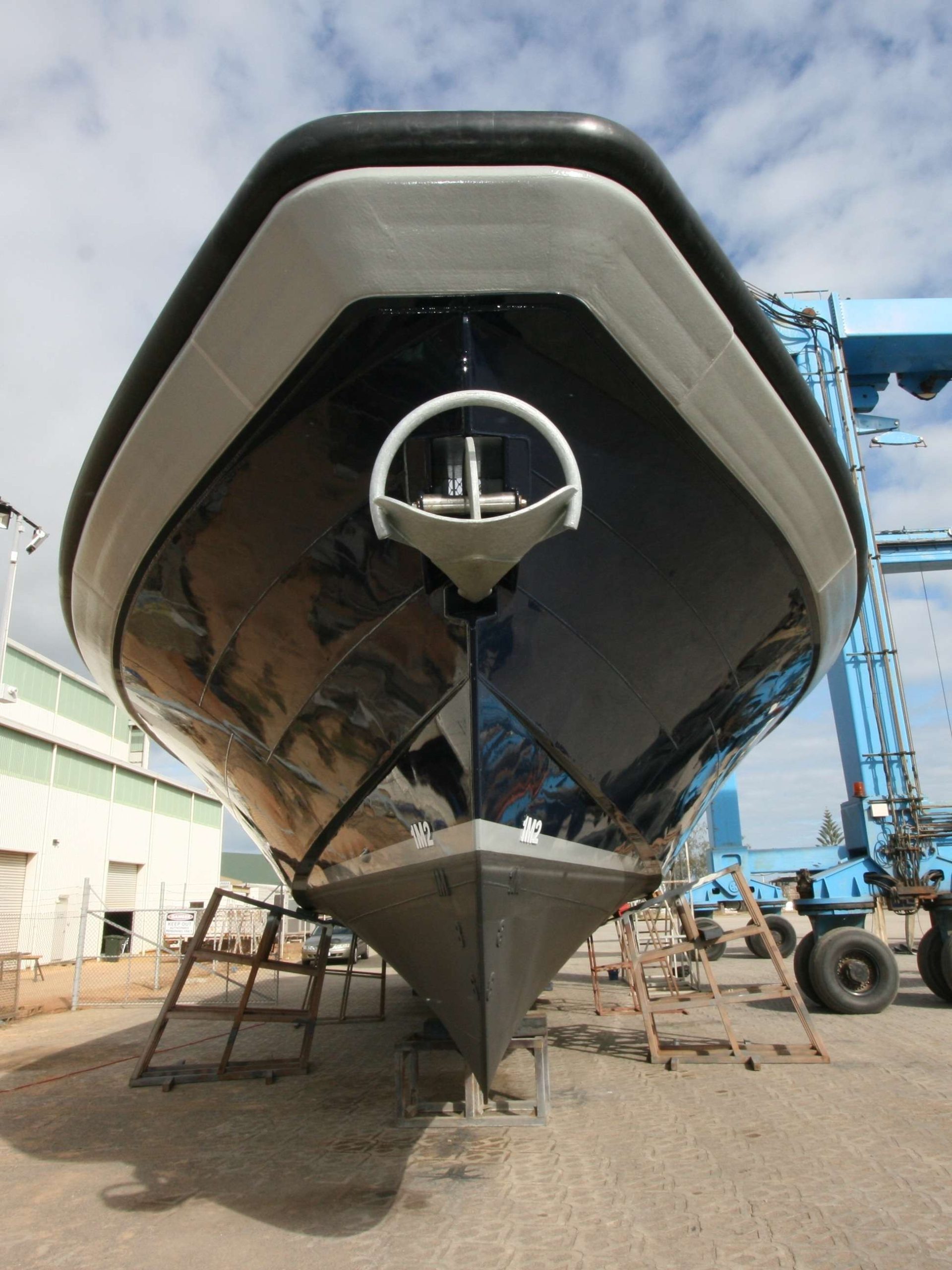

Breaking into a new market, the Berkeley is the first pilot boat to be built in Geraldton and is expected to change the face of pilot boat construction in the Mid West of Western Australia. Proven in sea trials to be able to maintain 32 knots and an impressively smooth transit in even rough seas, Berkeley has the speed in open water, high manoeuvrability, and extreme stable required in order to facilitate a luxury transit and easy pilot transfer from ship-to-ship. Taking inspiration from decades of experience in the fishing boat industry, Berkeley has been uniquely designed as a monohull with two keels, creating a skeg – protecting the propellers and providing the rudders top and bottom bearings, an innovation in pilot boat design. A midship bilge tank that lies beneath the deck can be readily filled to provide additional stability when required. An additional feature is that the wheelhouse is easily removable to enable complete access to the engines as necessary.

BOA_2015_SOUTHERLY_ADVbest-pilot-boat-2015



VIEW PRESSĀ

FacebookTwitterGoogle+

Specifications

Vessel Length 18.50 Meters
Launch Date May 2015
Vessel Type Pilot Boat
Survey Class AMSA-NSCV 2B & 2D
Builder Fine Entry Marine, Dongara Marine
Construction Material Marine Grade Aluminium Hull, Composite Superstructure
LOA 19.2 m
Beam 5.4 m

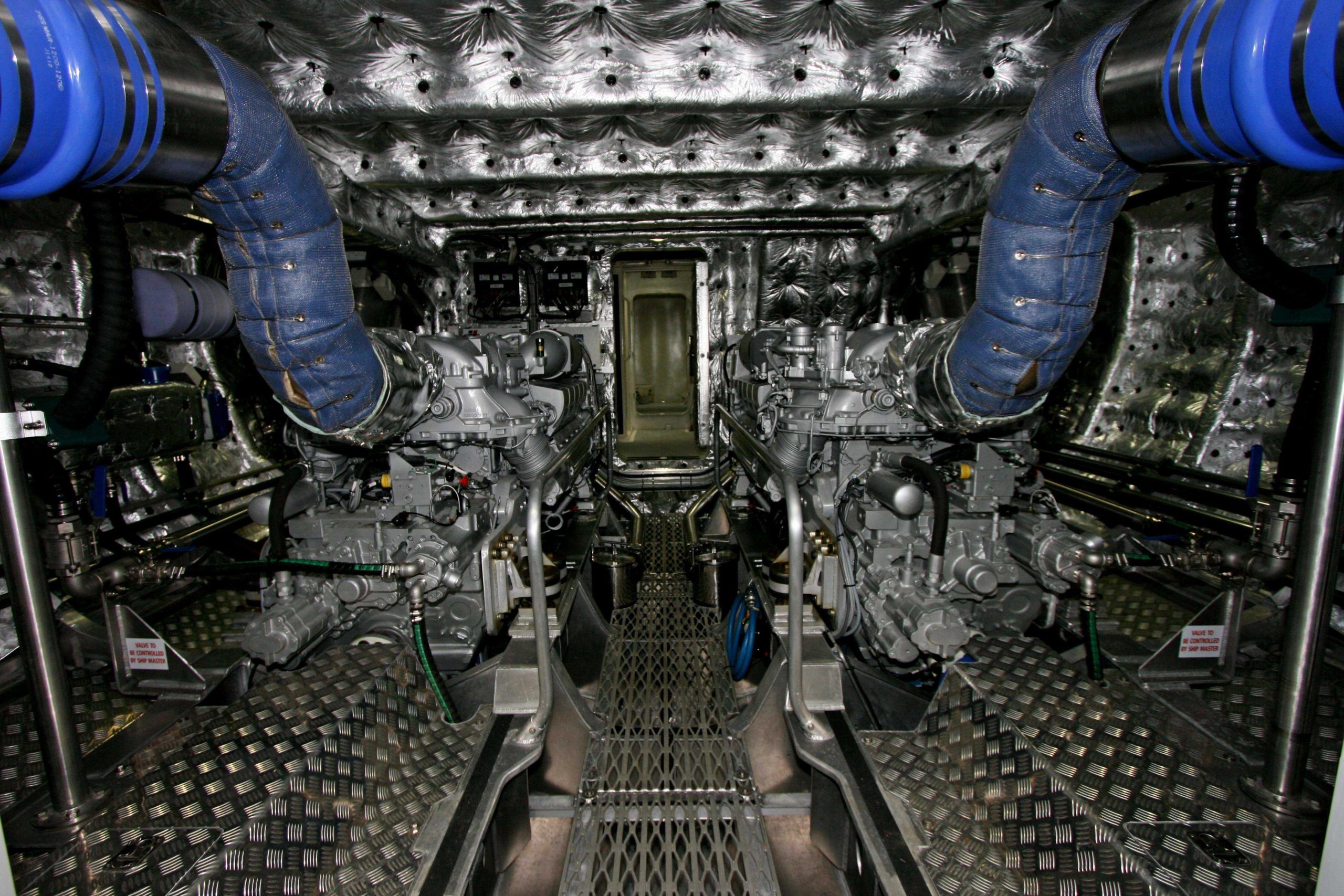

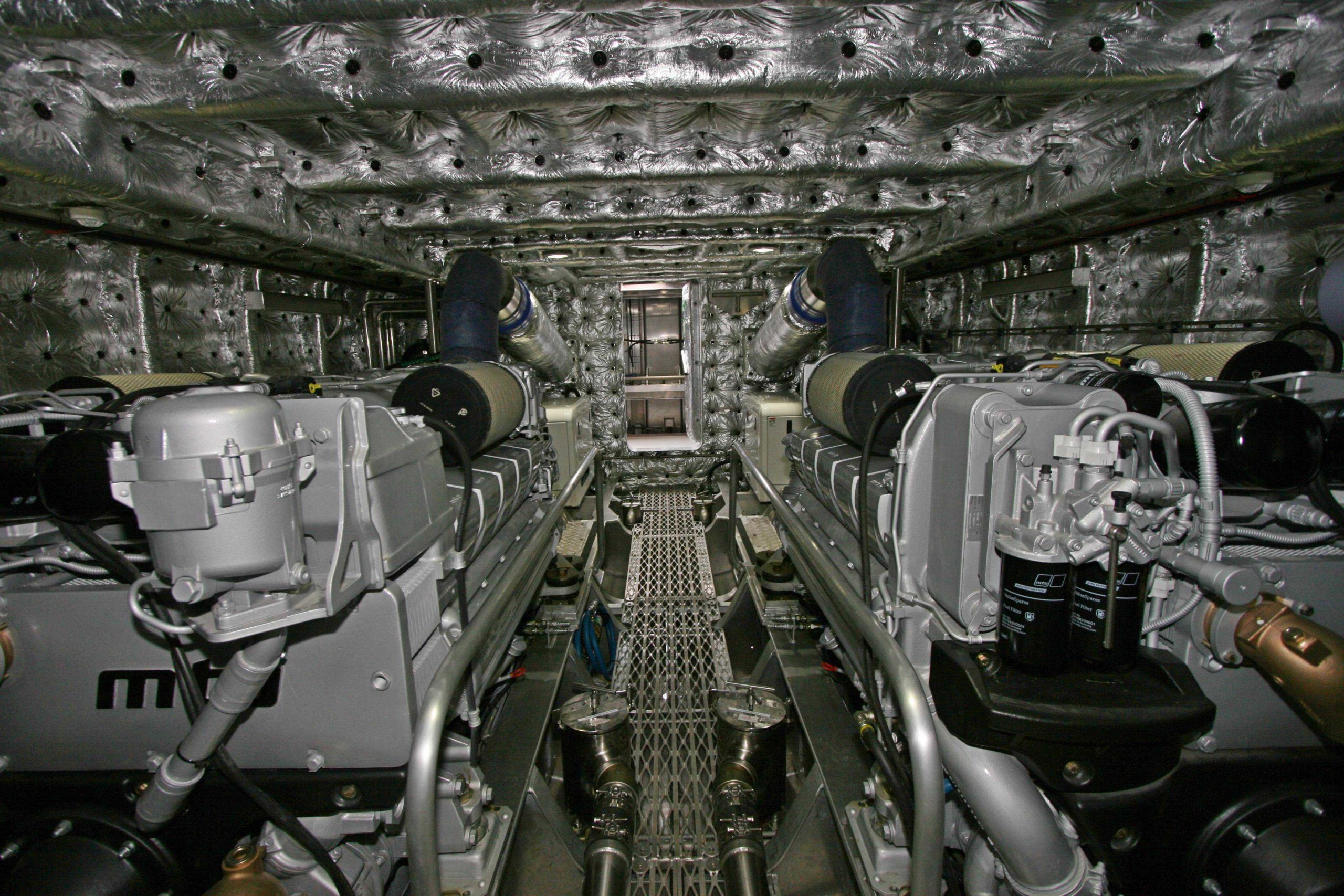

Main Engines 2 x MTU 10V2000 M72
Propulsion Fixed Pitch Propellers
Speed Max 34 kts
Speed Cruise 25 - 28 kts
Fuel Capacity 4,000 L
Freshwater Capacity 200 L
Crew 2 / 3
Passengers 4 / 12
