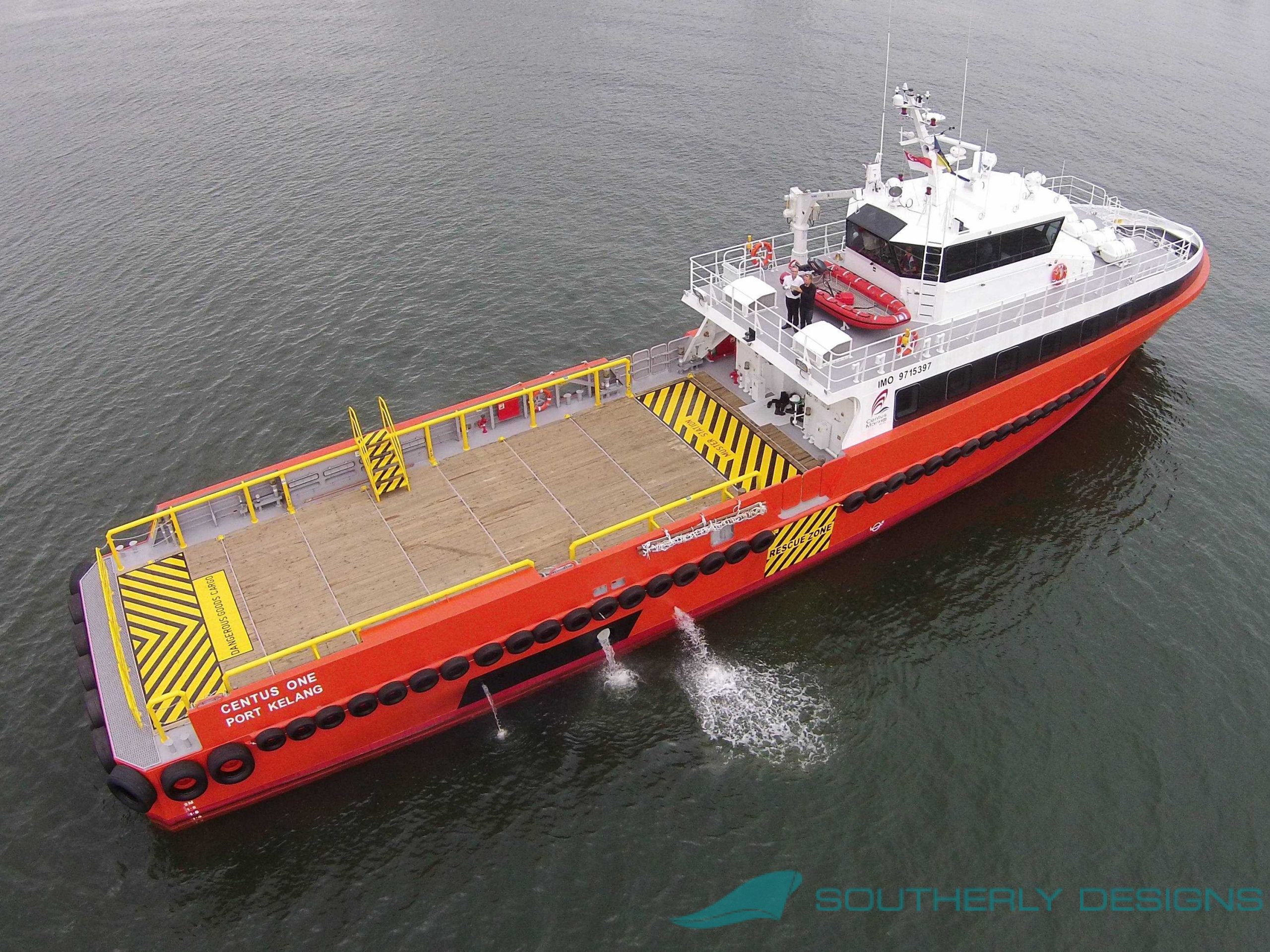

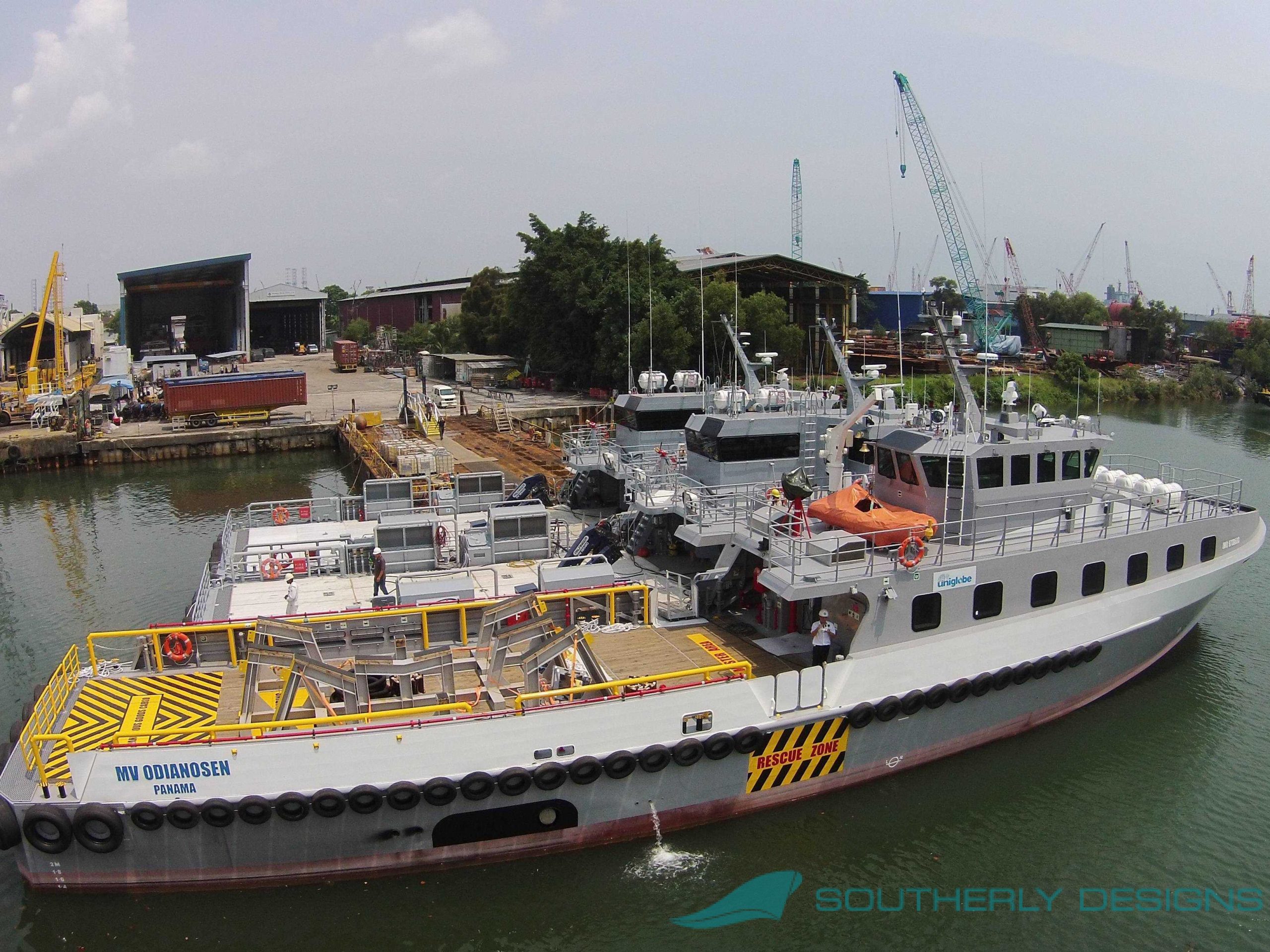

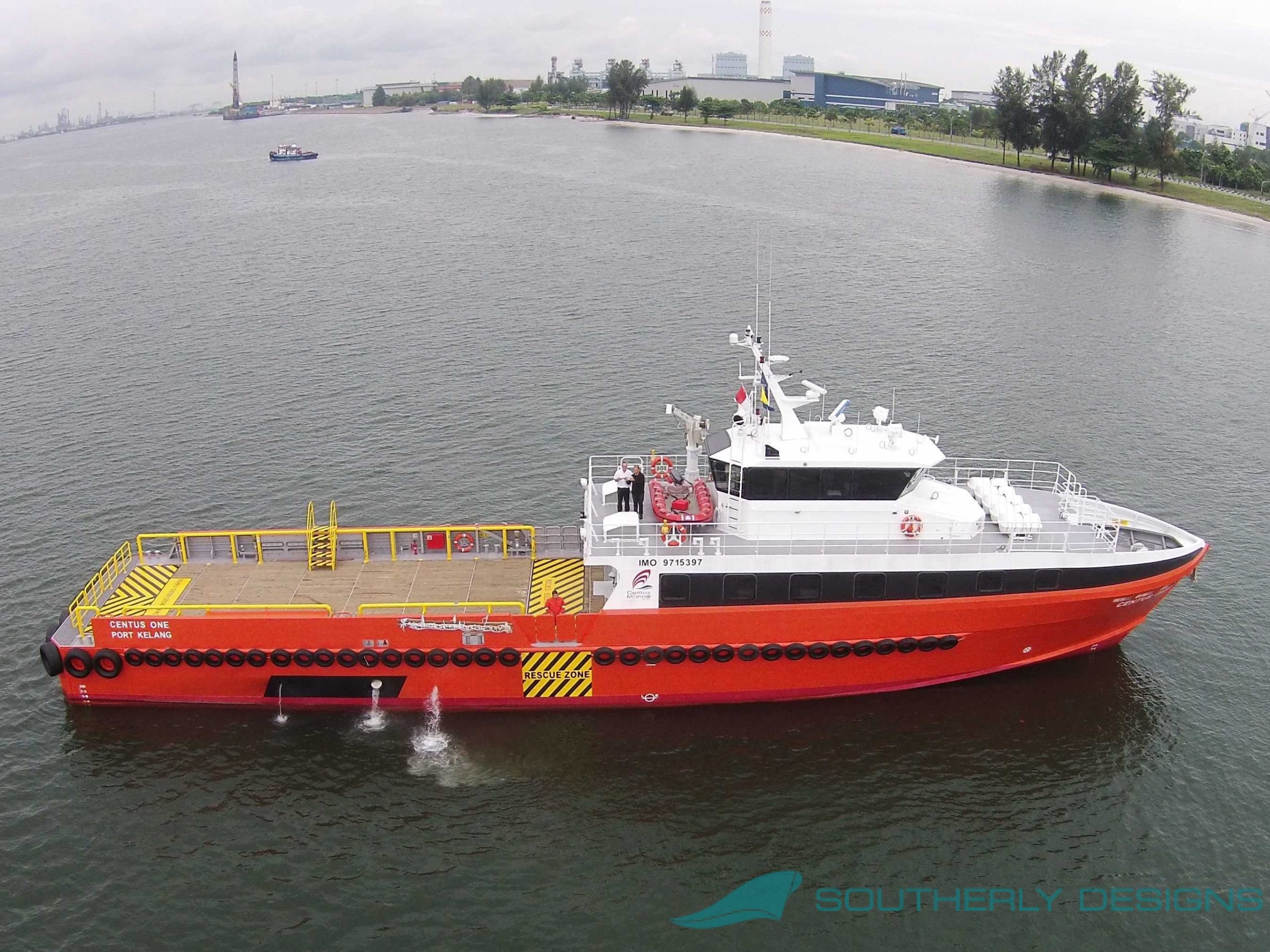

40.0m Crew Boat
The hugely successful 40.37 metre range of Rig Personnel / Utility Vessels are one of Southerly’s key designs of the recent years. The Generation 2 hull is complemented by a number of possible engine and drive line arrangements, to maintain an impressive cruising speed of 25 knots. The stern deck provides 105 square metres of workable deck area and is able to carry up to 47.5 tonnes of deck cargo. The central deck house comfortably seats 70 passengers and on the upper deck is the bridge which incorporates two control stations.
Specifications
| Vessel Length | 40.37 Meters |
|---|---|
| Launch Date | Oct 2014 |
| Vessel Type | Rig Personnel / Utility Vessel |
| Survey Class | OSV Code. MSC.235 |
| Builder | Strategic Marine |
| Number of Vessels | 8 |
| Construction Material | Marine Grade Aluminium |
| LOA | 40.37 m |
| Beam | 7.5 m |
| Main Engines | 2 x KTA 38 Cummins, 1 x KTA 50 Cummins |
| Propulsion | Fixed Pitch Propeller |
| Speed Max | 27 kts |
| Speed Cruise | 25 kts |
| Fuel Capacity | 56,000 L |
| Fresh Water Capacity | 29,600 L |
| Accommodation | 10 |
| Crew | 10 |
| Passengers | 70 |
Design Types: Offshore Support & Crew Boats
