8.50m Line Handling Vessel

8.50m Line Handling Vessel

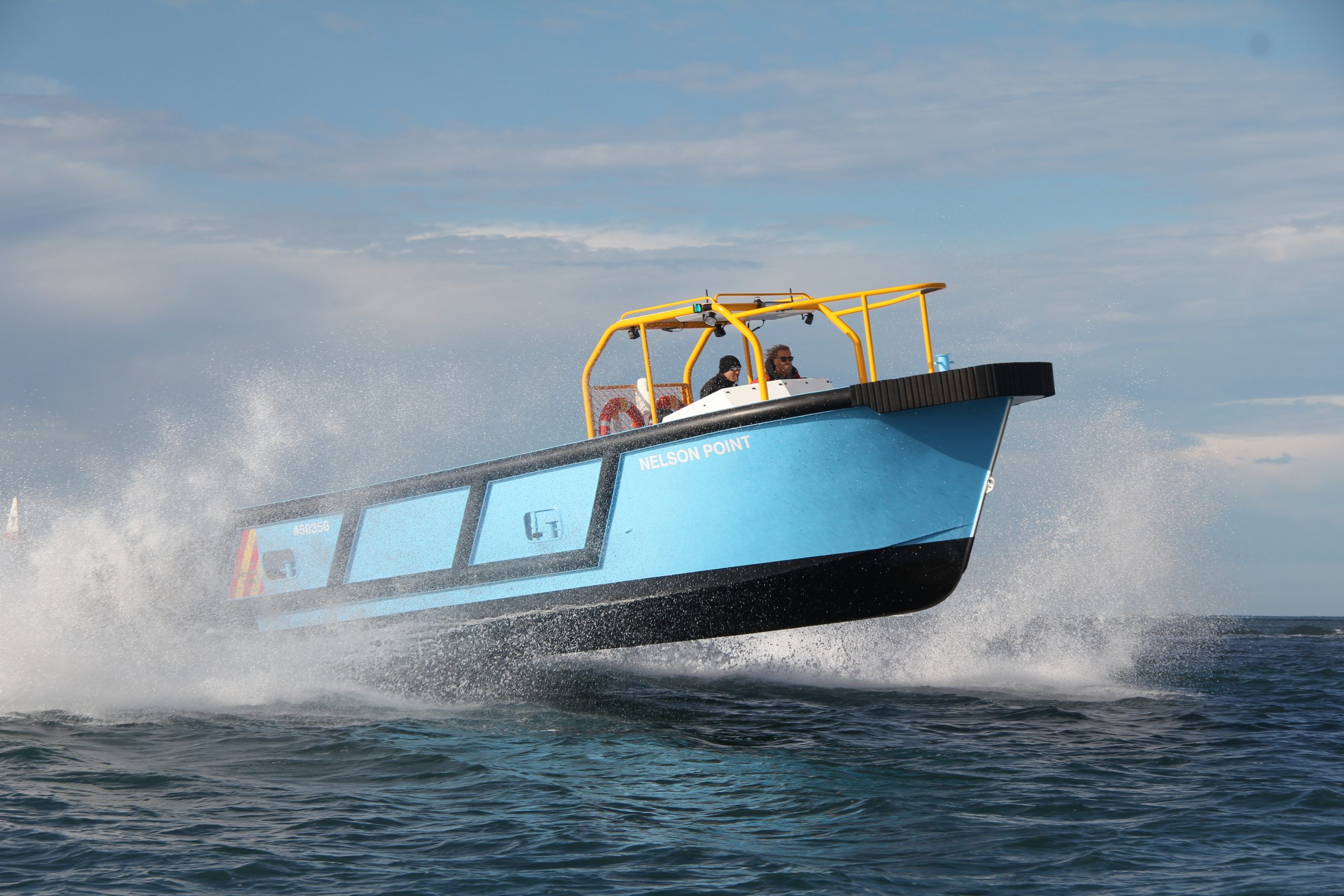

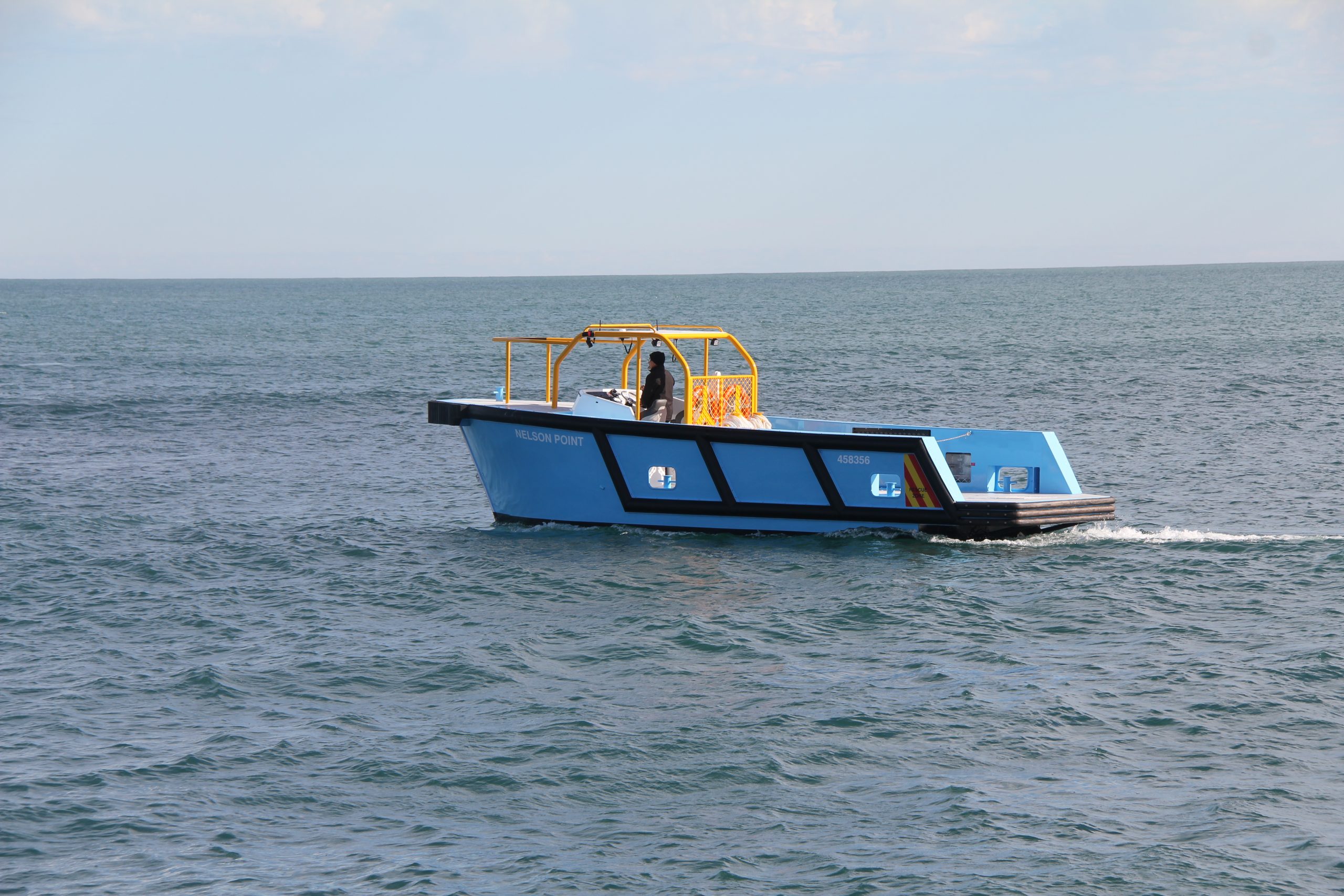

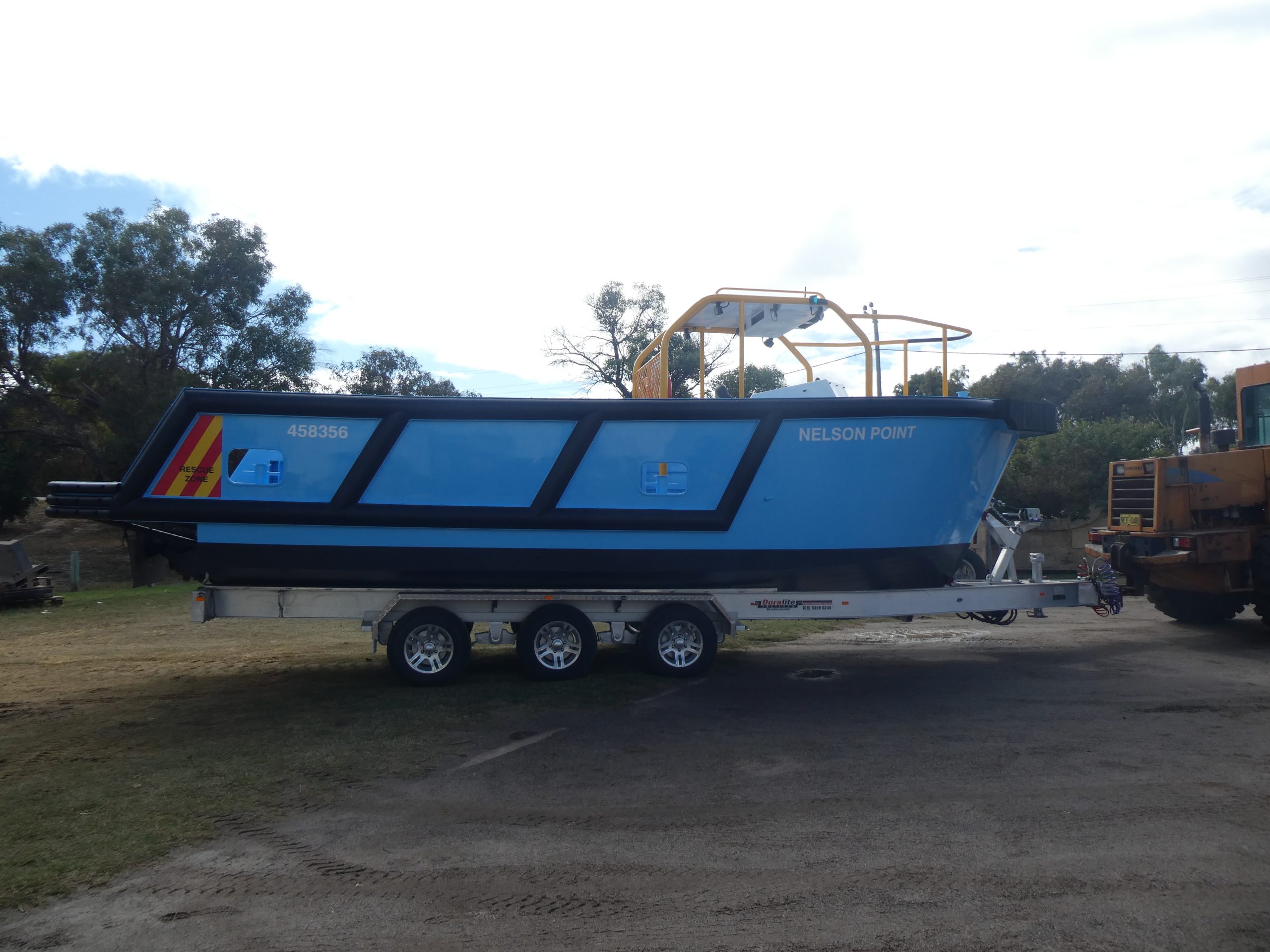

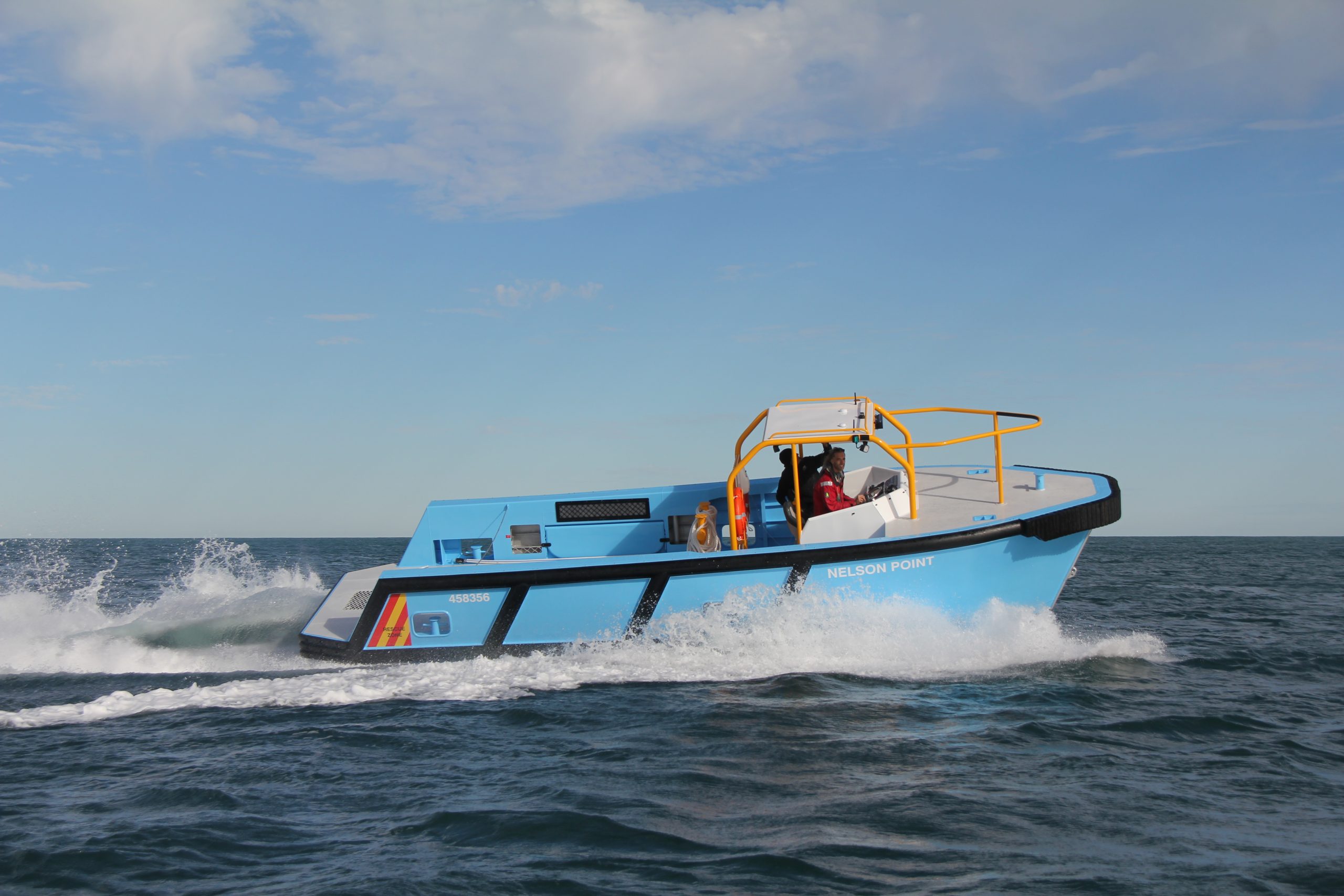

8.50m line handling and general purpose workboat for Jetwave Marine Service. The vessel will operate out of Port Hedland and conduct a variety of tasks such as line handling, crew transfer and survey work. Powered by a single waterjet the vessel has a maximum speed exceeding 30 knots and a bollard pull exceeding 1.2t. Additional features of the vessel include a 2.5t towing post, protective cage & mesh guard along with heavy duty bow fendering.

This vessel is a based on our 8.50m line handling vessel delivered to Jetwave in 2019 however features a traditional hull shape as opposed to the punt style. This will allow the new vessel to perform work outside of the port in harsher sea conditions.


Vessel Length 8.50 Meters
Launch Date Mar 2020
Vessel Type Line Handling Vessel
Survey Class AMSA 2D
Builder Dongara Marine
Construction Material Marine Grade Aluminium
LOA 9.80 Meters
Beam 3.20 Meters
Main Engine Yanmar 6LY2A-UTP
Propulsion Water Jet
Speed Max 32.0 kts
Speed Cruise 20.0 kts
Fuel Capacity 600 L
Crew 2
Passenger 6
Bollard Pull 1.2 t
