21.8m Lobster Fishing Vessel

Lobster Fishing Vessel

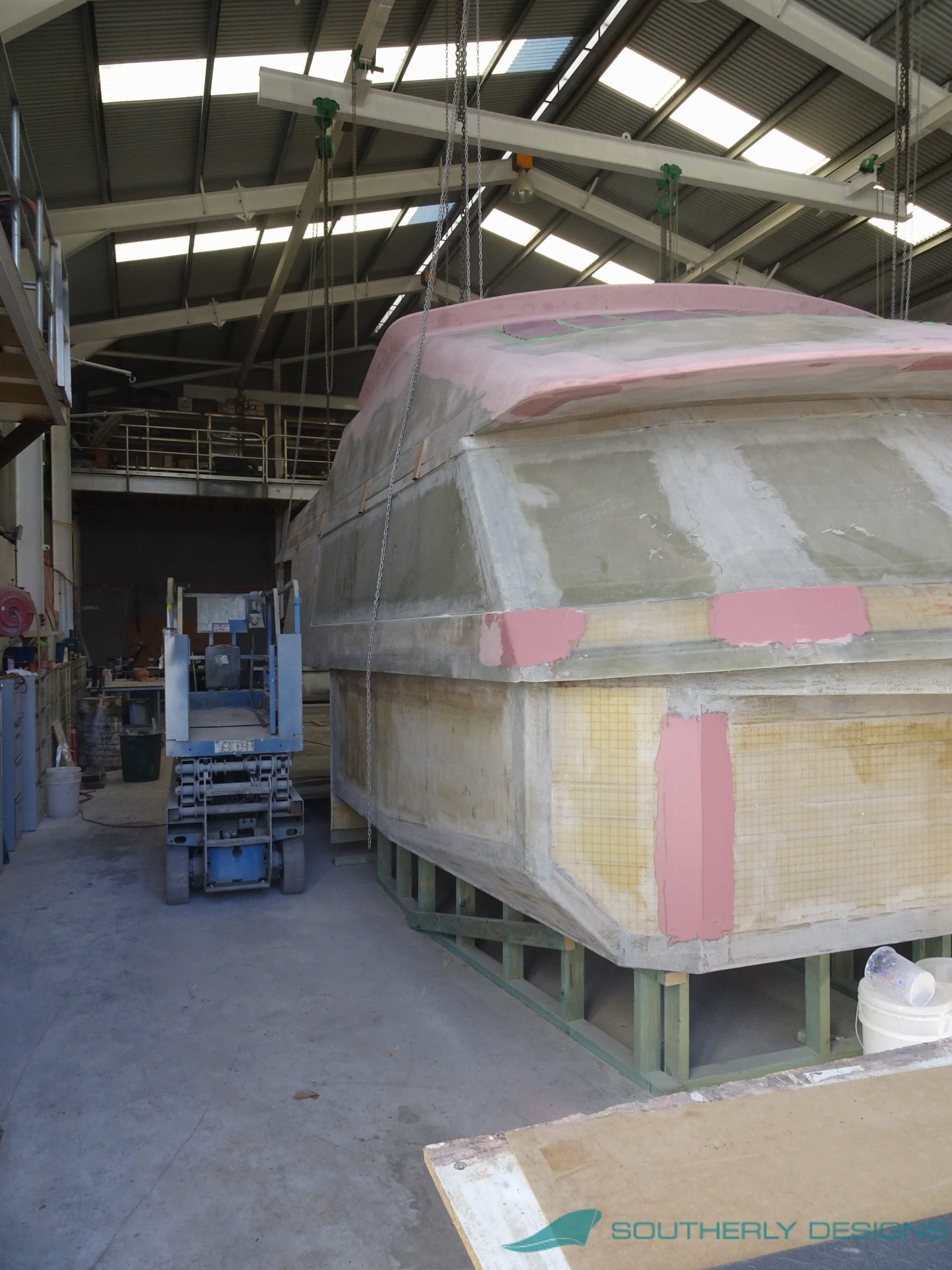

Design and construction underway on new 21.8m Lobster Vessel.
Following on from 2016’s “Daydawn” Southerly Designs and Xtreme Marine of Geraldton, Western Australia, have secured an order for another high capacity cray boat. Slightly smaller than the Daydawn the new vessel boasts the same MTU V8 twin screw power plant, twin keels and modular FRP superstructure construction. Officially measuring 21.8m (71.5ft) she is by no means a small vessel and achieves a carrying capacity of 104 baskets of live tank capacity.
A new addition to Southerly’s industry leading range of Cray Boats the new vessel is sure to turn heads when she enters service in early 2018.



Vessel Length 21.8 Meters
Launch Date Jan 2018
Vessel Type Lobster Fishing Vessel
Survey Class AMSA-NSCV 2B & 3B
Builder Xtreme Marine, Dongara Marine
Construction Material Marine Grade Aluminium Hull, Composite Superstructure
LOA 23.1 m
Beam 6.3 m
Main Engines 2 x MTU 8V2000 M72
Propulsion Fixed Pitch Propeller
Speed Max 24 kts
Speed Cruise 16 kts
Fuel Capacity 9,100 L
Fresh Water Capacity 1,000 L
Accomodation 6
Live Tank Capacity 94 Baskets
Crew 4 / 6
Passengers 12 / 0
